The Story

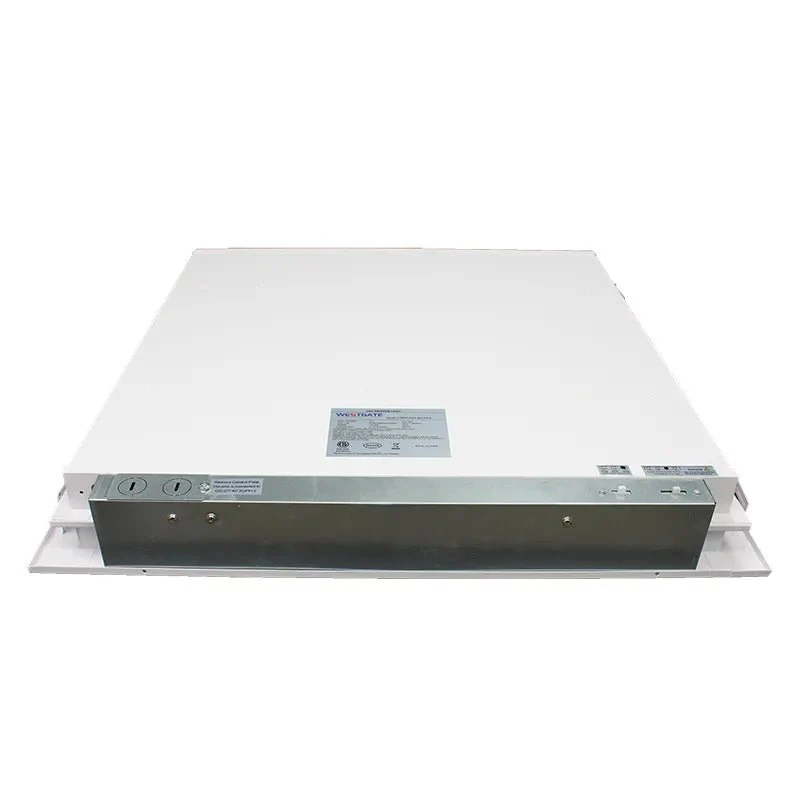

LED 2X4 Architectural Recessed Panel Lights, 30W/40W/50W, CCT
This modern, energy-efficient troffer features a sloped lens for enhanced light distribution, offering flexibility with selectable wattage and color temperature (CCT). Ideal for commercial and architectural spaces, it provides seamless integration with a range of design aesthetics while delivering superior illumination performance. Featuring adjustable power settings, this troffer maximizes energy savings without compromising lighting quality, ensuring compliance with energy codes and standards. Perfect for office, retail, and educational environments.
Technical Specs
- :: Voltage: 120-277VAC 50/60Hz
- :: Wattage: 30W/40W/50W
- :: Power Factor: >0.92
- :: Efficacy: 110 LPW
- :: High Quality LED Chips Provide High Efficiency, Heat Dissipation, Stability, and Lumen Maintenance
- :: Individual, Pure Aluminum Heat Sinks Offers Heat Transmission Faster than Die Cast Steel
- :: Driver Disconnect provided Where Required to Comply with US and Canadian Codes
- :: Performance Engineered Optical Lens Assembly Delivers Unique Beam Angles and Reduces Glare
- :: Polycarbonate Lens
- :: Operating Temp: -22°F to 104°F
- :: Dimmable: 0~10V Dimming
- :: Multi CCT: Selectable Multi-CCT & Power Switches Inside The Driver Box
- :: Total Lumens: 5500LM Max.
- :: Color Temperatures: 3000K/3500K/4000K/5000K
- :: Inside The Driver Box
- :: Color Rendering Index: CRI ≥ 80
- :: IP Rating: IP20 Indoor use only
Applications
- :: Retail/Schools/Offices
- :: Healthcare/Conference rooms
- :: Hospitality/Corridors
- :: Reception areas/Foyer
- :: Library
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
LED 2X4 Architectural Recessed Panel Lights, 30W/40W/50W, CCT
This modern, energy-efficient troffer features a sloped lens for enhanced light distribution, offering flexibility with selectable wattage and color temperature (CCT). Ideal for commercial and architectural spaces, it provides seamless integration with a range of design aesthetics while delivering superior illumination performance. Featuring adjustable power settings, this troffer maximizes energy savings without compromising lighting quality, ensuring compliance with energy codes and standards. Perfect for office, retail, and educational environments.
Technical Specs
- :: Voltage: 120-277VAC 50/60Hz
- :: Wattage: 30W/40W/50W
- :: Power Factor: >0.92
- :: Efficacy: 110 LPW
- :: High Quality LED Chips Provide High Efficiency, Heat Dissipation, Stability, and Lumen Maintenance
- :: Individual, Pure Aluminum Heat Sinks Offers Heat Transmission Faster than Die Cast Steel
- :: Driver Disconnect provided Where Required to Comply with US and Canadian Codes
- :: Performance Engineered Optical Lens Assembly Delivers Unique Beam Angles and Reduces Glare
- :: Polycarbonate Lens
- :: Operating Temp: -22°F to 104°F
- :: Dimmable: 0~10V Dimming
- :: Multi CCT: Selectable Multi-CCT & Power Switches Inside The Driver Box
- :: Total Lumens: 5500LM Max.
- :: Color Temperatures: 3000K/3500K/4000K/5000K
- :: Inside The Driver Box
- :: Color Rendering Index: CRI ≥ 80
- :: IP Rating: IP20 Indoor use only
Applications
- :: Retail/Schools/Offices
- :: Healthcare/Conference rooms
- :: Hospitality/Corridors
- :: Reception areas/Foyer
- :: Library
