4-inch Oil-Rubbed Bronze Canless Adjustable Gimbal- CCT

4-inch Oil-Rubbed Bronze Canless Adjustable Gimbal- CCT

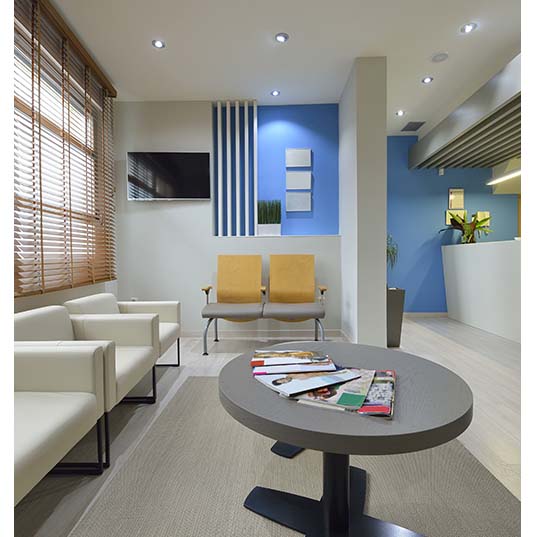

The DGD LED Downlight Gimbal Series offers a line of gimbal downlights that simplify the installation of tailored lighting in challenging locations. The high-performing light engine with an off-board driver enables more flexible installations and increased lifetime through improved thermal management. The DGD fixture uses a plenum-rated cable connector to link the downlight module to the remote driver box and then pops into place with its adjustable, spring-loaded retention tabs for a secure fit, eliminating the need for a J-box or recessed housing. Adding directional lighting for architectural accent in areas such as living rooms, hallways, stairways and corridors is now easier than ever.

Specifications

• Selectable models use a dual emitter array that enables CCT selection of 2700K, 3000K, 3500K, 4000K, or 5000K
• COB with greater than 90 CRI and an R9 greater than 50
• TIR optic provides smooth, uniform light with a 35° beam angle
• 32° Tilt with 360° rotation
• Input voltage 120VAC, 60Hz
• CCT selection switch on driver
• Off-board driver minimizes installation height and maximizes fixture life through improved heat management
• Dimmable to less than 10% with compatible TRIAC dimmers
• Operating temperature rating of -4°F to 104°F (-20°C to 40°C)
• Lifetime rated for greater than 54,000 hours
• Oil-Rubbed Bronze

2700K Warm 3000K Warm White 3500K Warm Neutral 4000K Neutral 5000K Cool 784 Lumens 845 Lumens 937 Lumens 994 Lumens 1044 Lumens 11.36 Input Watts 11.31 Input Watts 11.14 Input Watts 11.16 Input Watts 11.55 Input Watts 69.0 lm/W 74.7 lm/W 84.1 lm/W 89.1 lm/W 90.4 lm/W 96 CRI 96 CRI 96 CRI 96 CRI 96 CRI
